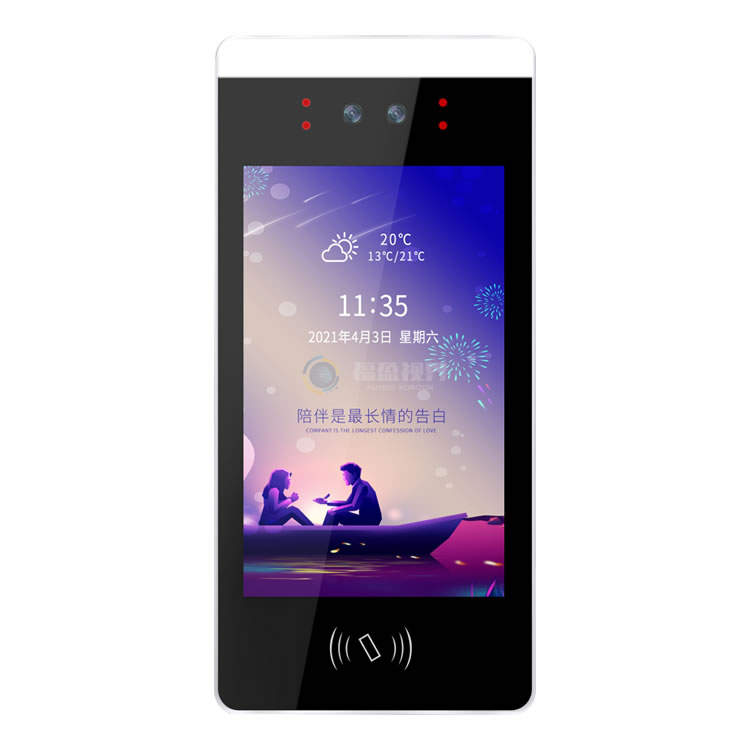

Product specification:

size: 8 inches, full viewing angle, 170 ° IPS LCD & nbsp

AI chip: hi3516dv300 rv1109 s905d3

storage: 2G + 8g or 4G + 32g

resolution: 1280 * 800

appearance size: height 273 * width 134 * thickness 27mm

opening size: 35mm

optional:

wall mounting bracket

Desktop seat frame

channel gate vertical column

long column

Color customizable: dark space gray, vitality red, platinum, gold and silver Technology blue

technical parameters:

● 2 megapixel high-definition wide dynamic camera dynamic double photographing anti-counterfeiting, and completely solve the deception of various photos on various carriers

● infrared and RGB double fill light at night& nbsp;

● support external or built-in IC, ID reader, ID reader and QR code reader, not just face brushing& nbsp;& nbsp;

● support 485 output and Wigan signal input and output, can be seamlessly connected with various access control controllers, and support WG26 and wg34

● face detection technology based on improved multi task cascade convolution neural network is adopted, which reduces the requirements for image quality and greatly improves the speed of face detection

● user capacity: 30000 standard configuration, customizable, up to 100000 people, recording capacity: 5 million

● recognition speed: ≤ 0.3s, recognition distance 0.5-5m, accuracy up to 99.99%

● support 1:1 face recognition and witness comparison, 1: n face recognition

● humanized design: customized voice and screensaver, fully open UI interface and real-time access to local weather

● personnel attendance management function; Blacklist / whitelist management, custom setting of access direction

visitor management function, visitors can be set up according to time and frequency. The WeChat Mini program, official account and APP mobile terminal

can be extended to provide unified authentication of the integrated machine parameters, providing a way of safety authentication.

. Support the expansion of LED screen, LCD screen and other statistics of the number of departments in the field

● watchdog design, automatic fault recovery

● the interface is fully open, supports the docking of all languages, and provides all kinds of SDK and test demo
